Both development and production environments are deployed in a fully automated fashion using ARM templates. As part of these deployments we also create Notification Hubs and related authorization rules.

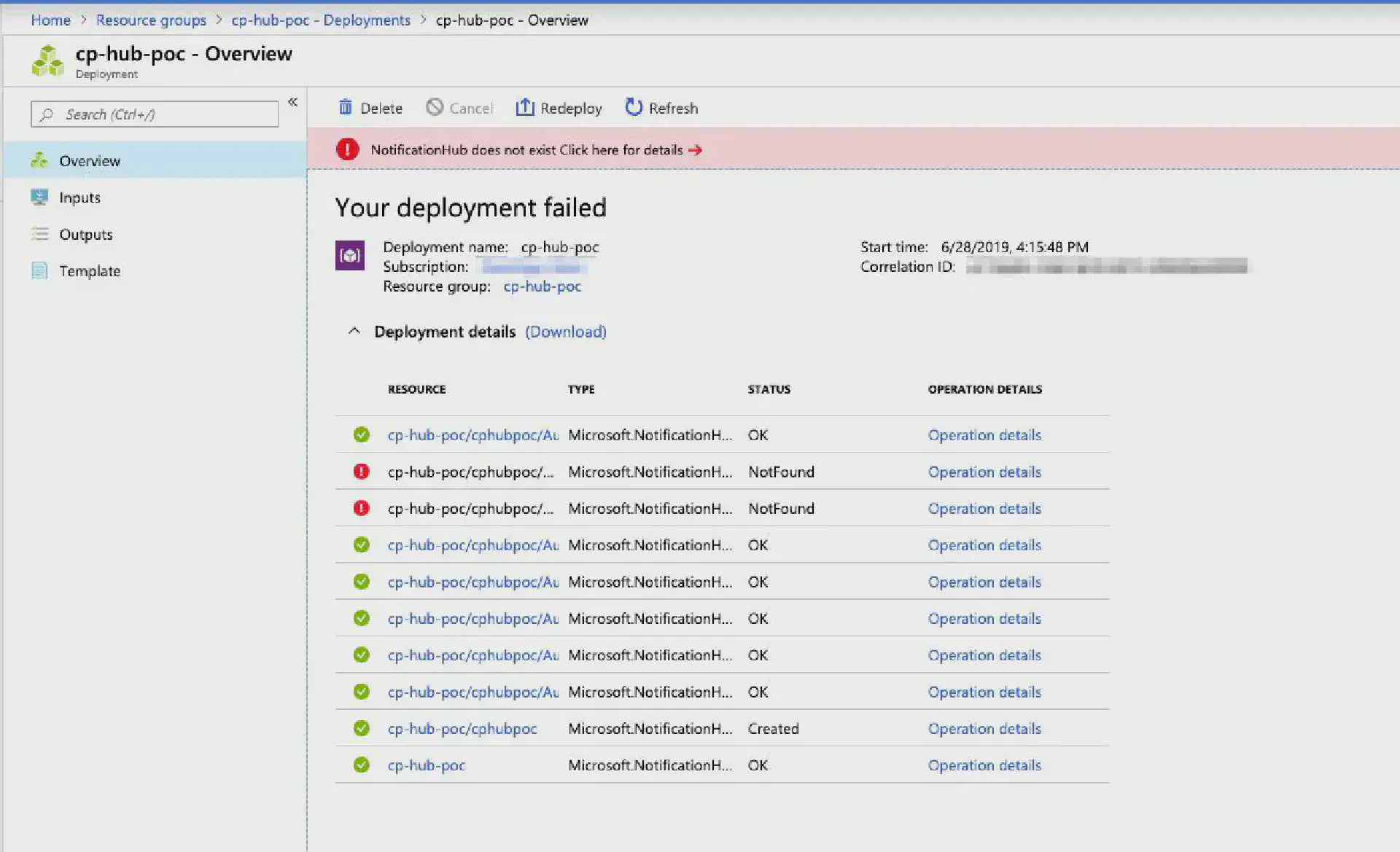

I noticed today that some of our deployments were failing due to the fact that the Notification Hub resource provider was not able to find a related resource although the necessary dependencies were defined.
With a little testing I was able to narrow it down to a race condition between the resource creation and resource operations such as listKey that act on the resource. I’ve put together the following brief template that will intermittently fail:
{
"$schema": "http://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json",
"contentVersion": "1.0.0.0",
"parameters": {
"Name": {
"type": "string"
}
},
"variables": {
"location": "[resourceGroup().location]",
"locationHub": "[variables('location')]",
"name": "[parameters('Name')]",
"nameHubNamespace": "[variables('name')]",
"nameHubHub": "[replace(variables('name'), '-', '')]",
"nameHubAuthorization1": "Auth1",
"nameHubAuthorization2": "Auth2",
"nameHubAuthorization3": "Auth3",
"nameHubAuthorization4": "Auth4"
},
"resources": [
{
"type": "Microsoft.NotificationHubs/namespaces",
"apiVersion": "2017-04-01",
"name": "[variables('nameHubNamespace')]",
"location": "[variables('locationHub')]",
"sku": {
"name": "Free"
},
"kind": "NotificationHub",
"properties": {
"namespaceType": "NotificationHub"
}
},
{
"type": "Microsoft.NotificationHubs/namespaces/notificationHubs",
"apiVersion": "2017-04-01",
"name": "[concat(variables('nameHubNamespace'), '/', variables('nameHubHub'))]",
"location": "[variables('locationHub')]",
"dependsOn": [
"[resourceId('Microsoft.NotificationHubs/namespaces', variables('nameHubNamespace'))]"
],
"properties": {}
},
{
"type": "Microsoft.NotificationHubs/namespaces/NotificationHubs/authorizationRules",
"apiVersion": "2017-04-01",
"name": "[concat(variables('nameHubNamespace'), '/', variables('nameHubHub'), '/', variables('nameHubAuthorization1'))]",
"dependsOn": [
"[resourceId('Microsoft.NotificationHubs/namespaces/notificationHubs', variables('nameHubNamespace'), variables('nameHubHub'))]"
],
"properties": {
"rights": [
"Send"
]
}
},
{
"type": "Microsoft.NotificationHubs/namespaces/NotificationHubs/authorizationRules",
"apiVersion": "2017-04-01",
"name": "[concat(variables('nameHubNamespace'), '/', variables('nameHubHub'), '/', variables('nameHubAuthorization2'))]",
"dependsOn": [
"[resourceId('Microsoft.NotificationHubs/namespaces/notificationHubs', variables('nameHubNamespace'), variables('nameHubHub'))]"
],
"properties": {
"rights": [
"Send"
]
}
},
{
"type": "Microsoft.NotificationHubs/namespaces/NotificationHubs/authorizationRules",
"apiVersion": "2017-04-01",
"name": "[concat(variables('nameHubNamespace'), '/', variables('nameHubHub'), '/', variables('nameHubAuthorization3'))]",
"dependsOn": [
"[resourceId('Microsoft.NotificationHubs/namespaces/notificationHubs', variables('nameHubNamespace'), variables('nameHubHub'))]"
],
"properties": {
"rights": [
"Listen"
]
}
},
{
"type": "Microsoft.NotificationHubs/namespaces/NotificationHubs/authorizationRules",
"apiVersion": "2017-04-01",
"name": "[concat(variables('nameHubNamespace'), '/', variables('nameHubHub'), '/', variables('nameHubAuthorization4'))]",
"dependsOn": [
"[resourceId('Microsoft.NotificationHubs/namespaces/notificationHubs', variables('nameHubNamespace'), variables('nameHubHub'))]"
],
"properties": {
"rights": [
"Listen"
]
}
}
],
"outputs": {
"connectionHub1": {
"type": "string",
"value": "[listKeys(resourceId('Microsoft.NotificationHubs/namespaces/notificationHubs/authorizationRules', variables('nameHubNamespace'), variables('nameHubHub'), variables('nameHubAuthorization1')), '2017-04-01').primaryConnectionString]"
},
"connectionHub2": {
"type": "string",
"value": "[listKeys(resourceId('Microsoft.NotificationHubs/namespaces/notificationHubs/authorizationRules', variables('nameHubNamespace'), variables('nameHubHub'), variables('nameHubAuthorization2')), '2017-04-01').primaryConnectionString]"
},
"connectionHub3": {
"type": "string",
"value": "[listKeys(resourceId('Microsoft.NotificationHubs/namespaces/notificationHubs/authorizationRules', variables('nameHubNamespace'), variables('nameHubHub'), variables('nameHubAuthorization3')), '2017-04-01').primaryConnectionString]"
},
"connectionHub4": {
"type": "string",
"value": "[listKeys(resourceId('Microsoft.NotificationHubs/namespaces/notificationHubs/authorizationRules', variables('nameHubNamespace'), variables('nameHubHub'), variables('nameHubAuthorization4')), '2017-04-01').primaryConnectionString]"
}
}
}
Workaround#
I was not able to find a workaround contained to the ARM template. The only way to fix this intermittent error for us was to update the script that executes the template deployment and do a retry if the deployment fails.
